John Deere Tractor Models

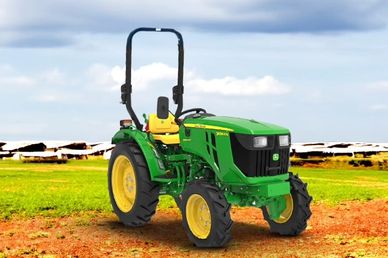

The John Deere 3028 EN is a 28 HP, 4WD mini-tractor designed for narrow orchards and vineyards. It features a 3-cylinder, 1318 cc Yanmar engine, 8F+8R gearbox, and 910 kg lift capacity. Known for its efficiency, it has oil-immersed disc brakes,liter fuel tank, and 5-year/5000-hour warranty

Key Specifications of the John Deere 3028 EN:

• Engine: 3-cylinder, 28 HP @ 2800 RPM (Yanmar), Liquid-cooled.
• PTO HP: 23.4 HP
• Transmission: 8 Forward + 8 Reverse (Sync Reverser / Collar Reverser).
• Lifting Capacity: 910 Kg (at hitch), with ADDC hydraulics.
• Drive: 4 WD (Four Wheel Drive).
• Brakes: Oil Immersed Disc Brakes.
• Steering: Power Steering.
• Fuel Capacity: 32 Liters.
• Total Weight: 1070 kg.

Features & Dimensions:

• Dimensions: ~2520 mm length, 285 mm ground clearance.
• Tyres: Front 6 X 14, Rear 8.3 X 24 / 9.5 X 24.
• Safety: Rollover Protection System (ROPS) and Seat with seat belt(optional).
• Usage: Suitable for spraying, tillage, and haulage.

The John Deere 3036EN is a 35–36 HP multipurpose tractor designed specifically for vineyards, orchards, and inter-culture operations. It features a compact, slender design for high maneuverability in narrow crop rows.

Engine Specifications

• Engine Power: 35 HP (25.9 kW) or 36 HP depending on the variant.
• Displacement: 1500 cc.
• Cylinders: 3-cylinder diesel engine.
• Rated RPM: 2800 engine rated RPM.
• Cooling System: Coolant cooled with overflow reservoir.
• Air Filter: Dry type, dual element.

Transmission & PTO

• Clutch: Single friction plate.
• Gearbox: 8 Forward + 8 Reverse (Sync Reverser / Collar Reverser).
• Speeds:
  • Forward: 1.6 km/h to 19.7 km/h.
  • Reverse: 1.5 km/h to 20.3 km/h.
• PTO Power: Approximately 27.87 PTO HP.
• PTO Type: Independent 6 Spline.
• PTO Speed: Dual speeds of 540 @ 2490 ERPM and 540E @ 1925 ERPM.

Dimensions & Capacity

• Lifting Capacity: 910 kgf.
• Total Weight: 1070 kg.
• Wheelbase: 1574 mm.
• Ground Clearance: 285 mm to 320 mm (higher on wider tire variants).
• Turning Radius: 2.3 m (with brakes); turning radius of 1.63 m is highlighted for its maneuverability in narrow spaces.
• Fuel Tank: 32 litres.

Key Features

• Brakes: Oil-immersed disc brakes for better traction and longer life.
• Steering: Power steering for effortless handling.
• Drive: 4-Wheel Drive (4WD) as standard.
• Tyre Sizes:
  • Front: 6.00 x 14 (standard) or 180/85-D12.
  • Rear: 8.30 x 24 / 9.50 x 24 / 11.2 x 20 ( wider tyre)
• Safety: Includes Neutral Safety Switch (NSS) and PTO NSS to prevent accidental starts

The John Deere 5036 D is a 36 HP multi-purpose agricultural tractor designed for efficiency in farming and haulage applications. It features a 3-cylinder engine, a high lifting capacity of 1600 kgf, and advanced transmission technology.

Engine Specifications

• Engine Power: 36 HP (26.8 kW) at 2100 Rated RPM.
• Engine Type: John Deere 3029D, 3-cylinder, naturally aspirated, coolant-cooled with overflow reservoir.
• Displacement: 2900 CC.
• Air Filter: Dry type, dual element with air restriction sensor.

Transmission & Brakes

• Clutch: Single plate clutch.
• Gearbox: Collarshift transmission with 8 Forward + 4 Reverse gears.
• Forward Speed: 3.13 to 34.18 kmph.
• Reverse Speed: 4.10 to 14.87 kmph.
• Brakes: Oil-immersed disc brakes for higher braking efficiency and longer life.

PTO & Hydraulics

• PTO Type: Independent, 6 splines.
• PTO Speed: 540 @ 2100 ERPM.
• PTO Power: 31.3 HP.
• Lifting Capacity: 1600 kgf with Automatic Depth and Draft Control (ADDC) and Category-II 3-point linkage.

Steering & Tyres

• Steering: Hydrostatic power steering as a standard feature for better maneuverability.
• Front Tyres: 6.0 x 16, 8 PR.
• Rear Tyres: 12.4 x 28, or 13.6 x 28, (Optional).

Dimensions & Capacity

• Fuel Tank Capacity: 60 Litres.
• Total Weight: 1760 kg.
• Wheelbase: 1970 mm.
• Ground Clearance: 390 mm.
• Turning Radius: 2900 mm (with brakes).

Key Features

• Operator Comfort: Side-shift gear levers and ergonomically designed operator station.
• Safety: Includes features like a neutral safety switch (PTO NSS), rollover protection system (ROPS), and finger guard.(optional)
• Warranty: offered with a 5000 hours or 5-year warranty

The John Deere 5105 is a 40 HP agricultural tractor known for its efficiency and durability in both dry and wet land cultivation. It is available in both 2WD and 4WD variants.

Engine Specifications

• Engine Power: 40 HP (29.4 kW).
• Engine Type: John Deere 3029D, naturally aspirated, 3-cylinder diesel.
• Displacement: 2900 CC.
• Rated Speed: 2100 RPM.
• Cooling System: Coolant-cooled with an overflow reservoir.
• Air Filter: Dry-type, dual-element for 99.9% cleaning efficiency.
• Max Torque: 156 Nm.

Transmission & Performance

• Gearbox: 8 Forward + 4 Reverse, Collarshift.
• Clutch: Single or Dual clutch options.
• Forward Speed: Ranges from approximately 2.83 km/h to 31.07 km/h.
• Reverse Speed: Ranges from approximately 3.74 km/h to 14.87 km/h (varies slightly by variant).
• Brakes: Oil-immersed disc brakes for higher braking efficiency.
• Steering: Power steering (hydrostatic) for easy manoeuvring.

Hydraulics & PTO

• Lifting Capacity: 1600 kgf.
• 3-Point Linkage: Category II with Automatic Depth and Draft Control (ADDC).
• PTO Type: Independent, 6 splines.
• PTO Power: 34.4 HP.
• PTO Speed: 540 RPM at 2100 engine RPM.

Dimensions & Capacities

• Fuel Tank: 60 litres.
• Total Weight: 1810 kg.
• Wheelbase: 1970 mm.
• Overall Length: 3410 mm.
• Front Tyres: 6.0 x 16 (2WD) or 8.0 x 18 (4WD).
• Rear Tyres: 13.6 x 28.

Key Features

• Durability: Features like a piston spray jet for cooling and a rear oil axle with metal face seal enhance engine life.
• Safety: Rollover Protection Structure (ROPS) available with a deluxe seat and seat belt. (optional)
• Maintenance: Designed with a single-piece hood for easy access to the air filter and other service points.

The John Deere 5042D Powerpro/Gearpro is a 44 HP, 2WD utility tractor designed for agricultural tasks. It features a 3-cylinder, 2900 cc 3029D engine at 2100 RPM, coupled with a 1600 kgf hydraulic lift capacity, collarshift transmission (8F+4R) and (12F + 4R) Gearpro, and oil-immersed disc brakes.

 Key Specifications of the John Deere 5042D PowerPro:

• Engine: 3-cylinder, 2900 cc, coolant-cooled, 2100 Rated RPM, dry-type air filter.
• Horsepower: 44 HP  with 35.7 PTO HP.
• Transmission: Collarshift, 8 Forward + 4 Reverse gears, 12 Forward + 4 Reverse gears in GearPro Series. single/dual clutch option.
• Hydraulics: 1600 kgf lifting capacity, 3-point linkage Category II, ADDC.
• Steering: Power steering.
• Brakes: Oil-immersed disc brakes.
• Fuel Tank: 60 Liters.
• Tires: 6.00x16 front and 13.6x28 rear.
• Weight: ~1810 kg.
• Warranty: 5 years / 5000 hours.

Key Features:

• Performance: High torque reserve suitable for heavy loads, and good fuel efficiency for long hours.
• Comfort & Utility: Features a side-shift gear lever, digital hour meter, mobile charging point, and single-piece hood with lock

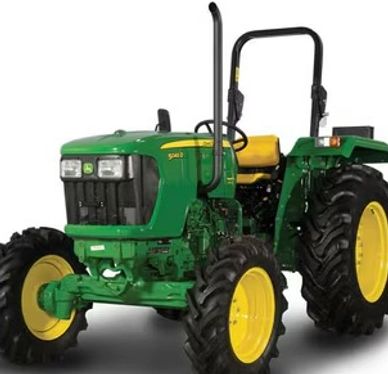

The John Deere 5045D is a 46 HP utility tractor featuring a 3-cylinder, 2900 cc Powerful Diesel engine. It offers a 12F+4R (or 8F+4R) gearbox, 1600 kgf lifting capacity, oil-immersed disc brakes, and is available in 2WD and 4WD configurations, designed for versatile farming applications.

Engine and Performance

• Engine: John Deere 3029D, 3 Cylinders, 2900 CC
• HP: 46 HP @ 2100 Rated RPM (45 HP in some variants)
• Torque: High torque with high torque backup for heavy implements
• Air Filter: Dry Type, Dual element
• Cooling: Coolant cooled with overflow reservoir

Transmission and Hydraulics

• Transmission: Collarshift, 12 Forward + 4 Reverse or 8 Forward + 4 Reverse
• Clutch: Single / Dual
• Hydraulics: Automatic Depth and Draft Control (ADDC), 1600 kgf lifting capacity

Steering and Braking

• Steering: Power Steering
• Brakes: Oil immersed disc brakes

PTO and Fuel

• PTO: Independent, 6 Splines; 540@2100 ERPM or 540@1600 ERPM
• Fuel Tank: 60 L

Dimensions and Weight

• Weight: ~1810 kg – 2100 kg
• Wheel Base: 1950 mm - 1970 mm
• Overall Length: 3367 mm - 3370 mm

Optional Features

• Roll Over Protection Structure (ROPS) with deluxe seat
• Dual PTO / Reverse PTO
• JDLink™ telematics

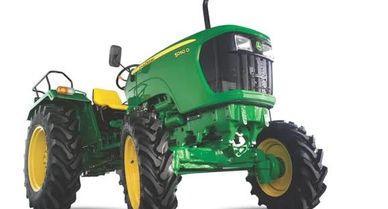

The John Deere 5050D is a 50 HP tractor designed for versatility in agricultural applications like puddling, tilling, and haulage. It is available in 2WD and 4WD variants, as well as a premium GearPro version.

Technical SpecificationsFeature SpecificationEngine Power50 HP (36.5 kW) @ 2100 Rated RPMEngine Type3-cylinder, 2900 cc, Coolant-cooledPTO Power~41.2 - 42.5 HPTransmission8 Forward + 4 Reverse (Standard)
12 Forward + 4 Reverse (GearPro)Clutch TypeSingle / Dual ClutchBrakesOil-immersed disc brakesLifting Capacity1600 kgf (Standard) / 1800 kgf (GearPro option)Fuel Tank60 LitresKey Features

• Transmission: Uses a Collarshift gearbox for smooth shifting and has a top forward speed of approximately 32.44 km/h.
• Steering: Equipped with Power Steering as standard to reduce operator fatigue.
• Hydraulics: Features Automatic Depth and Draft Control (ADDC) for precise implement management.
• PTO Options: Offers a 540 RPM standard and economy mode (540E @ 1600 ERPM) to save fuel during lighter tasks.
• Safety & Comfort: Includes a deluxe seat, side-shift gear levers, and optional Roll-Over Protection Structure (ROPS)

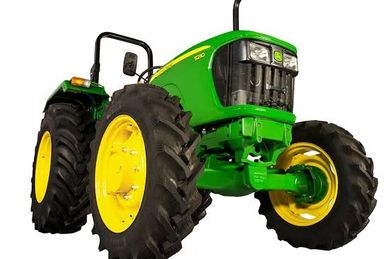

The John Deere 5210 is a 50 HP tractor designed for heavy-duty agricultural tasks like deep ploughing and haulage. It is available in both 2WD and 4WD configurations. It is also available with Creeper gear for applications like Onion Planters, Sileage Harvestor, Trench Diggers etc

Engine Performance

• Horsepower: 50 HP (36.5–37.3 kW).
• Engine Type: John Deere 3029T, 3-cylinder, direct injection, turbocharged diesel.
• Displacement: Approximately 2900 cc to 3029 cc.
• Rated RPM: 2100 to 2400 RPM (varies by specific variant).
• Cooling System: Coolant-cooled with an overflow reservoir; includes an engine oil cooler.
• Air Filter: Dry type, dual element.

Transmission & PTO

• Clutch: Dual clutch (standard).
• Transmission Type: Collarshift or Top Shaft Synchronizer (TSS).
• Gearbox Options:
  • Standard: 9 Forward + 3 Reverse.
  • GearPro: 12 Forward + 4 Reverse.
  • CREEPER gearbox with 9 Forward + 3 Reverse with Creeper speed gear
• Forward Speed: 1.9 – 31.5 kmph.
• PTO HP: ~42.8HP
• PTO Type: Independent, 6-spline; options for Dual PTO (Standard + Economy) and Reverse PTO.

Hydraulics & Brakes

• Lifting Capacity: Standard 2000 kg; optional upgrade to 2500 kg on GearPro models.
• Hydraulic Controls: Automatic Depth & Draft Control (ADDC), Category II linkage.
• Brakes: Self-adjusting, self-equalising, hydraulically actuated oil-immersed disc brakes.
• Steering: Power steering.

Dimensions & Capacities

• Fuel Tank: 68 litres.
• Total Weight: 2110 kg (2WD) to 2410 kg (4WD).
• Wheelbase: 2050 mm.
• Ground Clearance: 385 mm to 440 mm depending on the model.

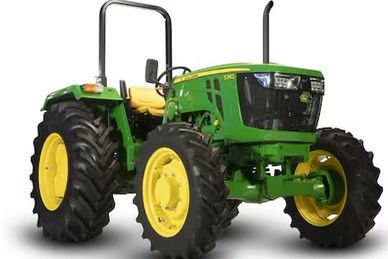

The John Deere 5310 is a versatile utility tractor primarily available in two main configurations: the standard Old 55 HP model(due to government Trem IV pollution norms new production is stopped) and the upgraded 5310 PowerTech (Trem IV) model, which delivers 57 HP. Both versions are known for their high backup torque and are suitable for heavy-duty tasks like deep ploughing and haulage. It comes with two power modes Standard 57Hp and Economy with 52Hp with a toggle switch

Engine SpecificationsThe tractor is powered by a reliable 3-cylinderengine designed for fuel efficiency and durability.

• Horsepower: 55 HP (Standard) / 57 HP (PowerTech Trem IV).
• Engine Rated RPM: 2400/2100RPM (Standard) / 2100 RPM (PowerTech).
• Displacement: ~2900 cc.
• Air Filter: Dry type, dual element for protection in dusty conditions.
• Cooling System: Coolant cooled with an overflow reservoir.

Transmission & PTOThe 5310 offers multiple transmission options to suit different agricultural applications.

• Clutch Type: Dual-clutch is standard; optional PermaClutch or Electro-Hydraulic (EH) clutch on higher variants.
• Gearbox Options:
  • Standard: 9 Forward + 3 Reverse (Collarshift/Synchromesh).
  • GearPro Speed: 12 Forward + 4 Reverse.
  • PowrReverser: 12 Forward + 12 Reverse.
  • Creeper Gear : 9 forward + 3 Reverse + very low speed creeper gear
• Forward Speed: 2.6 – 31.9 kmph (Standard 9x3); up to 32.6 kmph (GearPro).

• PTO Power: 46.7 HP (Standard) / 49 HP (PowerTech).
• PTO Speed: Independent 6-spline; 540 @ 2376 ERPM (Standard) or 540/540E options.

Hydraulics & DimensionsEquipped with advanced Automatic Depth and Draft Control (ADDC), the hydraulic system supports a variety of heavy implements.

• Lifting Capacity: 2000 kg (Standard); upgradable to 2500 kg on PowerTech models.
• Fuel Tank Capacity: 68 Litres (Standard) / 71 Litres (PowerTech).
• Brakes: Hydraulically actuated, self-adjusting Oil Immersed Disc Brakes.
• Steering: Power steering comes as standard, with a tilt-adjustable option.
• Total Weight: ~2110 kg (2WD) to ~2600 kg (4WD PowerTech).
• Wheelbase: 2050 mm.

Warranty & Features

• Warranty: 5000 hours or 5 years.
• Additional Tech: Features like JDLink for remote monitoring and EQRL (Electric Quick Raise and Lower) for implements are available on select models.

The John Deere 5405 is a high-performance tractor in the 63 HP category, designed for heavy-duty farming and commercial applications. Available in both 2WD and 4WDconfigurations, it features advanced technologies like High-Pressure Common Rail (HPCR) fuel injection for better efficiency. it comes with two power modes Standard mode 63Hp and Economy mode 57HP power with toggle switch.

Engine Specifications

• Engine Power: 63 HP (46–47 kW) @ 2100 RPM.
• Engine Type: John Deere 3029H, 3-cylinder, turbocharged, and intercooled.
• Displacement: 2900 cc.
• Cooling System: Coolant-cooled with an overflow reservoir.
• Air Filter: Dry type, dual element.
• Torque: Approximately 265 Nm.

Transmission & PTO

• Transmission Type: Collarshift or Synchromesh.
• Gearbox: 12 Forward + 4 Reverse (standard), with options like 12F+12R (PowrReverser) or 9F+3R (Creeper).
• Clutch: Dual clutch (optional EH clutch or PermaClutch available).
• PTO Power: 54–55 PTO HP.
• PTO Speed: Independent, 6-spline; Standard: 540 @ 2100 ERPM, Economy: 540 @ 1600 ERPM.

Hydraulics & Brakes

• Lifting Capacity: Standard 2000 kgf; optional heavy-duty lift up to 2500 kgf.
• 3-Point Linkage: Category II with Automatic Depth and Draft Control (ADDC).
• Brake Type: Self-adjusting, hydraulically actuated, oil-immersed disc brakes.
• Steering: Power steering (tilt and telescopic options available depending on the model).

Dimensions & Capacities

• Fuel Tank: 68L to 71L (up to 82L for CAB models).
• Total Weight: 2280 kg (2WD) to 2600 kg (4WD).
• Wheelbase: 2050 mm.
• Ground Clearance: 425 mm (4WD) to 520 mm (2WD)

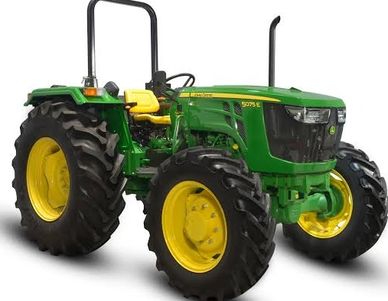

The John Deere 5075E is a 74 HP (55 kW)utility tractor available in both 2WD and 4WD configurations, designed for versatile agricultural and commercial applications. It features a 2.9L, 3-cylinder turbocharged PowerTech engine and is frequently offered in multiple transmission and cabin variants. This tractor comes with two power modes Stadard Mode 74HP and Economy Mode 57HP with a toggle switch.

Engine PerformanceThe tractor is powered by the John Deere 3029H or PowerTech™ 3029 engine.

• Horsepower: 74 HP
• Displacement: 2900 cc (2.9 L).
• Rated RPM: 2100 to 2400 RPM depending on the specific model and emission norm.
• Torque: Approximately 214 Nm.
• Emission Standards: Complies with TREM IV or Final Tier 4 norms depending on the region.
• Cooling: Liquid-cooled with an overflow reservoir.

Transmission and SpeedThe 5075E offers several gearbox options to suit different operational needs:

• Standard Gearbox: 9 Forward + 3 Reverse SynchroShuttle transmission. With Creeper gear option
• Optional Gearbox: 12 Forward + 12 Reverse PowrReverser™ transmission, which allows for clutch-less directional changes.
• Additional Option: 12 Forward + 4 Reverse GearPro Speed for heavy-duty applications.
• Speed Range: Forward speeds typically range from 2.2 km/h to 32.7 km/h.

Hydraulics and PTO

• Lift Capacity: 2,000 kgf standard, with an optional upgrade to 2,500 kgf.
• PTO Power: Approximately 63.7 HP to 64.5 HP.
• PTO Type: Independent, 6-spline dual PTO (540 @ 2376 ERPM and 540 Economy @ 1705 ERPM).
• 3-Point Linkage: Category II with Automatic Depth and Draft Control (ADDC).

Dimensions and Weight

• Total Weight: Varies by configuration; 2WD models are roughly 2,450 kg, while 4WD models range from 2,640 kg to 2,948 kg (for AC Cabin versions).
• Wheelbase: 2,045 mm to 2,050 mm.
• Overall Length: 3,530 mm to 4,026 mm depending on the hitch and cabin setup.
• Ground Clearance: 425 mm to 520 mm.
• Fuel Tank: 68–71 litres for Open Operator Station (OOS) models and up to 82 litres for Cab models.

Key Features

• Brakes: Hydraulic actuated oil-immersed disc brakes.
• Steering: Power steering standard, with tilt and telescopic options available on cab models.
• Operator Comfort: Available in Open Operator Station or a Deluxe HVAC Cabin.
• Tires: Common front sizes include 12.4 x 24 (4WD) and rear sizes of 18.4 x 30
